Artemisinic acid exhibits antitumor activity in MCF-7 breast cancer cells through the inhibition of angiogenesis, VEGF, m-TOR and AKT signalling pathways

  • Yan Cui NanFang PET Center, Medical Imaging Center, Nanfang Hospital, Southern Medical University, Guangzhou 510515
  • Hui Ren Department of Ultrasound, The First Affiliated Hospital of Inner Mongolia Medical University, Hohhot, 010050
  • Hao-Chang Li Department of Ultrasound, The First Affiliated Hospital of Inner Mongolia Medical University, Hohhot, 010050
  • Quan-Shi Wang NanFang PET Center, Medical Imaging Center, Nanfang Hospital, Southern Medical University, Guangzhou 510515
Keywords: AKT signalling pathway, Angiogenesis, Antitumor, Artemisinic acid, MCF-7 breast cancer cell, m-TOR, VEGF

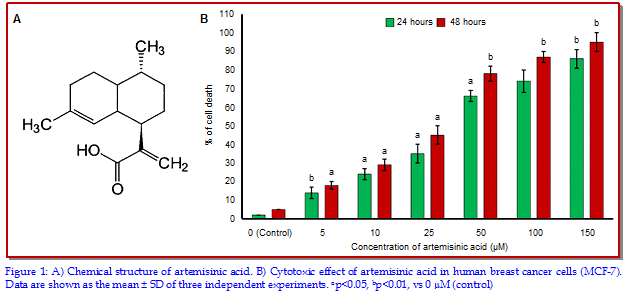

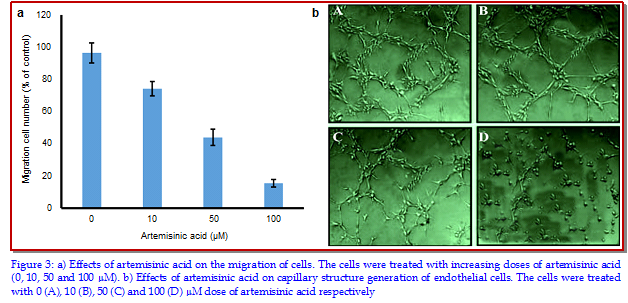

The aim of the present study was to evaluate the antitumor and anti-angiogenic effects of artemisinic acid in MCF-7 human breast cancer cells. Various cell signalling pathways (VEGF, m-TOR and AKT signalling pathways) and MTT assay were used. The in vivo antitumor activity of artemisinic acid was evaluated by means of tumor xenograft mouse model. Transwell cell migration assay was used to examine the chemotactic motility of the human umbilical vascular endothelial cells (HUVECs), while as endothelial cell capillary-like tube formation assay was used to evaluate the effect of artemisinic acid on the tube formation in HUVECs. We found that artemisinic acid considerably reduced both the volume and weight of concrete tumors and reduced angiogenesis in a xenograft mouse tumor model in vivo. Further, artemisinic acid suppressed the VEGF-induced cell migration and capillary-like tube formation of HUVECs in a dose-dependent manner. Artemisinic acid was found to suppress the VEGF-induced phosphorylation of VEGFR2 and also the activity of AKT and m-TOR.

Video Clip of Methodology:

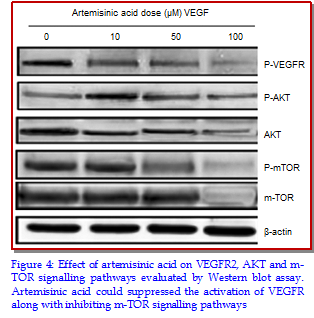

Western blot assay: 4 min 33 sec   Full Screen   Alternate


Download data is not yet available.
556 Read
325 Feature


Carmeliet P, Jain RK. Angiogenesis in cancer and other diseases. Nature 2000; 407: 249-57.

Carmeliet P. Angiogenesis in life, disease and medicine. Nature 2005; 438: 932-36.

Compagni A, Christofori G. Recent advances in research on multistage tumorigenesis. Br J Cancer. 2000; 83: 1-5.

Falcon BL, Barr S, Gokhale PC, Chou J, Fogarty J, Depeille P, Miglarese M, Epstein DM, McDonald DM. Reduced VEGF production, angiogenesis, and vascular regrowth contribute to the antitumor properties of dual mTORC1/mTORC2 inhibitors. Cancer Res. 2011; 71: 1573-83.

Ferrara N, Kerbel RS. Angiogenesis as a therapeutic target. Nature 2005; 438: 967-74.

Guo J, Li Y, Xin L. Tangeretin prevents prostate cancer cell proliferation and induces apoptosis via activation of Notch signalling and regulating the androgen receptor (AR) pathway and the phosphoinositide 3-kinase (PI3k)/Akt/mTOR pathways. Bangladesh J Pharmacol. 2015; 10: 937-47.

Kerbel RS. Tumor angiogenesis. N Engl J Med. 2008; 358: 2039-49.

Kowanetz M, Ferrara N. Vascular endothelial growth factor signaling pathways: Therapeutic perspective. Clin Cancer Res. 2006; 12: 5018-22.

Liu LZ, Zheng JZ, Wang XR, Jiang BH. Endothelial p70 S6 kinase 1 in regulating tumor angiogenesis. Cancer Res. 2008; 68: 8183-88.

Pang X, Yi Z, Zhang J, Lu B, Sung B, Qu W, Aggarwal BB, Liu M. Celastrol suppresses angiogenesis-mediated tumor growth through inhibition of AKT/mammalian target of rapamycin pathway. Cancer Res. 2010; 70: 1951-59.

Pisanti S, Picardi P, Prota L, Proto MC, Laezza C, McGuire PG, Morbidelli L, Gazzerro P, Ziche M, Das A, Bifulco M. Genetic and pharmacologic inactivation of cannabinoid CB1 receptor inhibits angiogenesis. Blood 2011; 117: 5541-50.

Pyun BJ, Choi S, Lee Y, Kim TW, Min JK, Kim Y, Kim BD, Kim JH, Kim TY, Kim YM, Kwon YG. Capsiate, a non-pungent capsaicin-like compound, inhibits angiogenesis and vascular permeability via a direct inhibition of Src kinase activity. Cancer Res. 2008; 68: 227-35.

Quesada AR, Munoz-Chapuli R, Medina MA. Anti-angiogenic drugs: From bench to clinical trials. Med Res Rev. 2006; 26: 483-530.

Schlessinger J. New roles for Src kinases in control of cell survival and angiogenesis. Cell 2000; 100: 293-96.

Weis SM, Cheresh DA. Tumor angiogenesis: Molecular pathways and therapeutic targets. Nat Med. 2011; 17: 1359-70.

Xu J, Yuan Q, Luo P, Sun X, Ma J. Pleurotus eous polysaccharides suppress angiogenesis and induce apoptosis via ROS-dependent JNK activation and mitochondrial mediated mechanisms in MCF-7 human breast cancer cells. Bangladesh J Pharmacol. 2015; 10: 78-86.

How to Cite
Cui, Y., H. Ren, H.-C. Li, and Q.-S. Wang. “Artemisinic Acid Exhibits Antitumor Activity in MCF-7 Breast Cancer Cells through the Inhibition of Angiogenesis, VEGF, M-TOR and AKT Signalling Pathways”. Bangladesh Journal of Pharmacology, Vol. 11, no. 3, July 2016, pp. 691-6, doi:10.3329/bjp.v11i3.26512.
